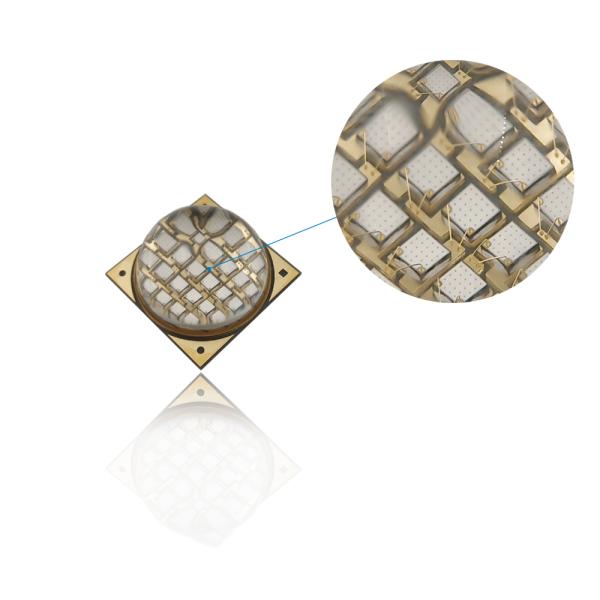

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Shenzhen Learnew Optoelectronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Brand Name : LEARNEW

Place of Origin : Guangdong, China

MOQ : 10

Power : 100W

Wavelength : 395nm

Viewing Angle : 60-90°

Input Voltage : 48-54V

Input Current : 2100mA (Max=3A)

Operating Temperature : -20 - 65℃

Storage Temperature : -40 - 110℃

Chip Material : Ingan

Substrate : ALN Coppering

Lens : Quartz Glass

Size : 16*16MM

Optical Power : 42000-50000mW

Lighting Area : R15MM

LED Chips : VERTICAL(LG or HPO)

Working Hours : 10000

Contact Now

New product uv led 100W 365 nm 395nm 60-90deg UVA led cob chip for UV curing

Product Description

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Application

UV Curing

Endoscopy

Coatings and inks
Slik-screen printing
Maskless Lithography
3Dflatbed printing
PCB exposure machine
Medical&industrial grade products

PRODUCT NAME:

100W 395nm 60-90deg UVA led cob chip

POWER DISSIPATION:

100W

DESIGN ADVANTAGE 1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use

INPUT CURRENT:

2100mA
(Max=3A)

INPUT VOLTAGE:

48-54V

WHOLE SIZE: 16*16MM

LENS:

QUARTZ GLASS LENS

VIEW ANGLE:

60-90°

CHIPS PKG MODEL: VERTICAL
(LG or HPO)

SUBSTATE LOAD:

ALN COPPERING

MANUFACTURER:

LEARNEW OPTO

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens
